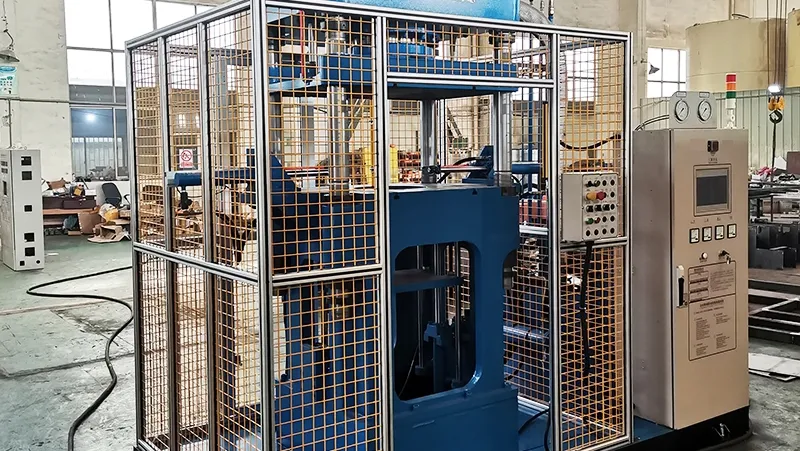

Air Spring Crimping Press
Rolling Lobe & Convoluted Air Spring Assembling
These air spring crimping presses are designed to join metal cover plates with rubber air spring bodies through a controlled crimping process. The pressing operation provides a smooth finished surface while minimizing marks or deformation on the assembled air springs.
Technical Specifications
- Press Force: 200 T
- Working Table Size: 850 × 700 mm (with 4 T-slots on the table surface)
- Maximum Daylight Opening: 1500 mm
- Main Hydraulic Cylinder Bore Diameter: Ø360 mm
- Main Hydraulic Cylinder Stroke: 700 mm
- Press Closing Speed: Fast closing/return speed ≥50 mm/s; slow closing speed ≥10 mm/s
- Maximum Workpiece Height: ≤700 mm
- Maximum Workpiece Diameter: 313 mm
- Side Hydraulic Cylinder Bore Diameter: Ø63 mm × 2
- Ejector Cylinder Bore Diameter: Ø50 mm
