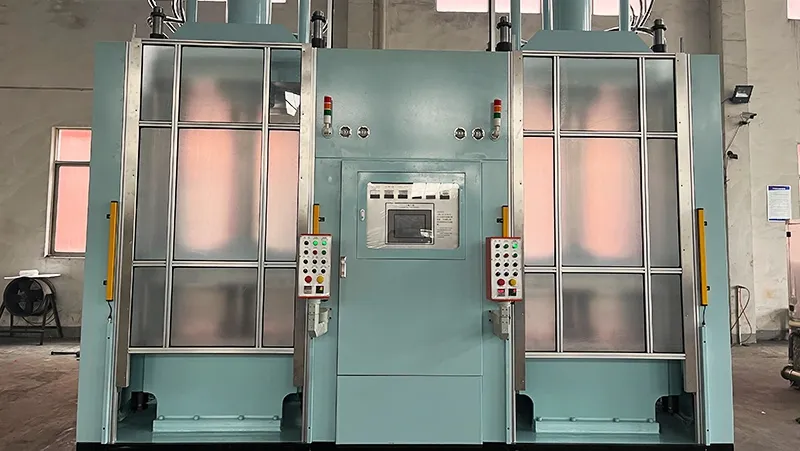

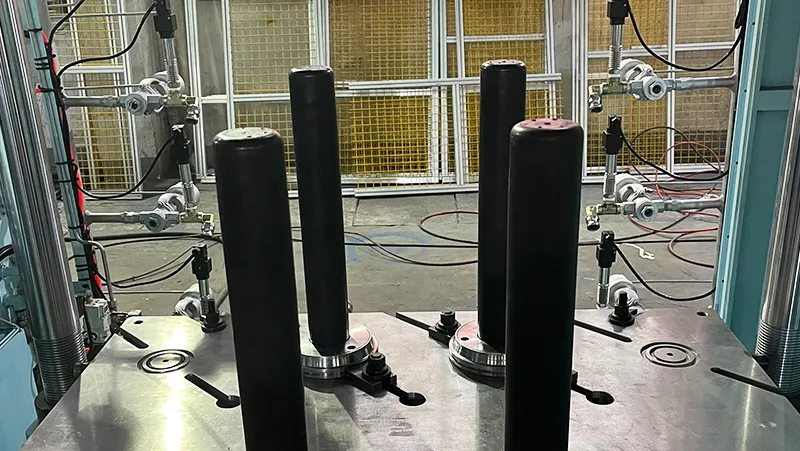

Sleeve air spring curing presses complete the vulcanization process for sleeve-type automotive air springs by applying controlled heat, pressure, and curing time. They have a four-column frame that integrates heating platens, insulation plates, a center mechanism, automatic mold lifting and side-pulling mechanism, internal pressure system, steam heating circuit, PLC touch screen control system, and hydraulic station to support stable curing operations. These curing presses have two curing stations, so they can process two molds at the same time, while their independent control cabinets allow each station to adjust temperature, pressure, and curing time separately through the main control system.

Designed Mold Closing Force: 60 T (30 T × 2 stations)
Top and Bottom Heating Platen Size: 600 × 600 × 87 mm
- Mold Center Opening Diameter: 460 mm
- Heating Method: Steam or heat transfer oil heating
Motor Power: 11 kW (5.5 kW × 2)
Number of Curing Stations: 2
Centering Mechanism Quantity: 2 sets

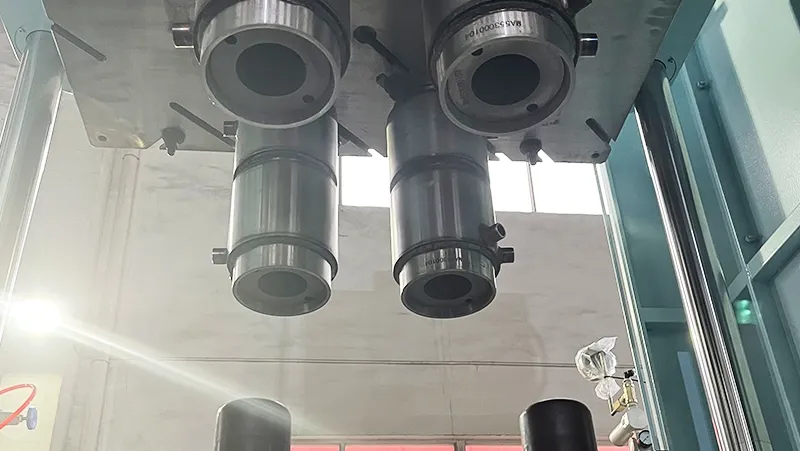

Upper Center Mechanism Ejection Cylinder Stroke: 1400 mm
Lower Center Mechanism Ejection Cylinder Stroke: 250 mm
Main Cylinder Diameter: Ø140 mm × 2 units
Main Cylinder Stroke / Spacing: 1400 / 1600 mm
Left and Right Side Mold Cylinder Stroke: 150 mm (75 mm each side)
- Cylinder Diameter: 60 mm Piston Rod Diameter: 30 mm
Mold Lifting Cylinder Stroke: 80 mm
- Cylinder Diameter: 80 mm
- Piston Rod Diameter: 40 mm
Hydraulic Working Pressure: 21 MPa
Steam Working Pressure: ≤1.7 MPa
Machine Dimensions: Approx. 3000 × 4360 × 5100 mm (L × W × H)
Machine Weight: Approx. 15 tons
