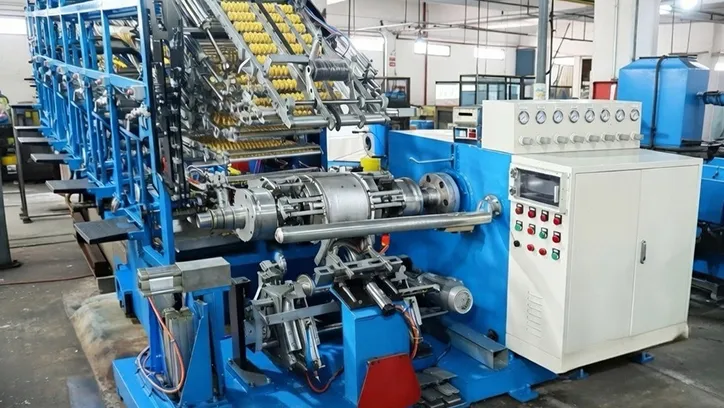

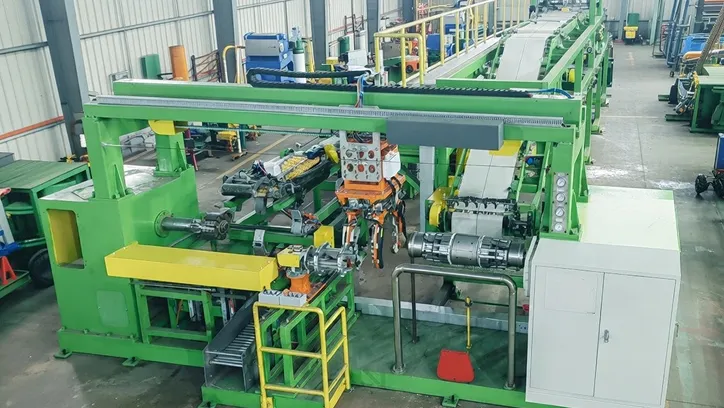

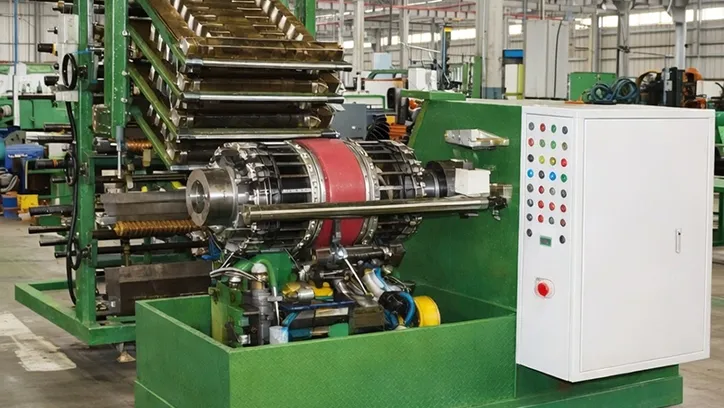

Motorcycle Tire Building Machine
(Spring Turn Up)
Video
Spring turn up motorcycle tyre building machines are used to build motorcycle tyre and tubeless motorcycle tyre. The building process includes ply application, bead setting, and ply turn-up in one operation, making carcass forming more consistent and reducing manual work on the production line. Spring turn up tyre building machines are suitable for motorcycle tyre manufacturing lines that require stable building quality and a higher level of automation.
Technical Specifications
| Model | ||
| Building Type | Flat Drum Expansion | Flat Drum Expansion |
| Applicable Tyre Size (inch) | 8–15" | 16–21" |
| Number of Feed Rack Layers | 4 | 4 |
| Cord Fabric Width (mm) | ≤ 500 | ≤ 500 |
| Cord Fabric Roll Diameter (mm) | ≤ 450 | ≤ 450 |
| Inner Liner Roll Diameter (mm) | ≤ 250 | ≤ 250 |
| Building Speed (r/min) | 35 / 120 | 35 / 120 |
| Motor Power (kW) | Main machine: 2.2; feed rack: 0.75 × 4 | Main machine: 2.2; feed rack: 0.75 × 4 |
| Overall Dimensions (L × W × H) (mm) | 3800 × 2260 × 1930 | 3800 × 2260 × 1930 |
| Weight (kg) | 3300 | 3300 |
Features
- The full tyre building process is carried out on a single drum in one step
- Inner liner and ply are applied in a lower lamination arrangement
- More complete tread splice formation helps avoid cracking on both sides, reducing the need for manual rework
- The secondary fixed-length detection and ply inspection help reduce short ply or missing ply problems during the building process
