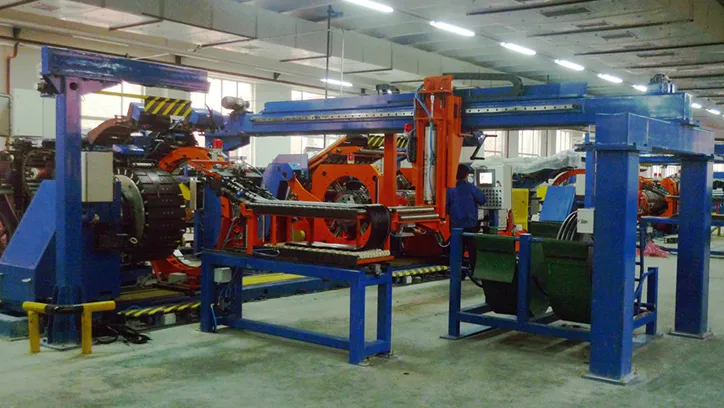

Truck Tyre Building Machine
All-steel Radial Tyre Building Machine, Truck Tyre Uni-Stage Building Machine
Truck tire building machines are widely used for all-steel radial green tyres in sizes from 17.5" to 24.5". The control system combines a touchscreen interface, PLC control, fieldbus communication, and servo drives, which makes daily operation easier and helps the tyre building process run more steadily. User-editable programs also give operators more flexibility when adjustments are needed for different production requirements.
Technical Specifications
| Bead Diameter | 17.5"–20"–24"/24.5" |
| Shaped Carcass Outside Diameter (mm) | 730–1220 |
| Max. Transfer Ring Diameter (mm) | 1250 |
| Applicable Tyre Sizes | 7R17.5–12.00R24 / 12R24.5 |
| Belt Package Drum Diameter (mm) | 658–860–1160 |
| Belt Package Drum Width (mm) | 450 |
| Belt Package Drum Speed (r/min) | 0–11 |
| Building Drum Speed (r/min) | 0–150 |
| Building Drum Center Height (mm) | 1050 |
