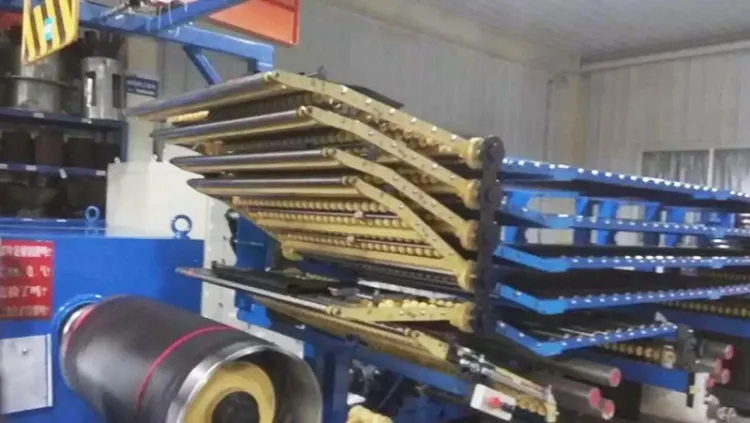

Air Spring Building Machine
Railway Air Spring Manufacturing
Technical Specifications

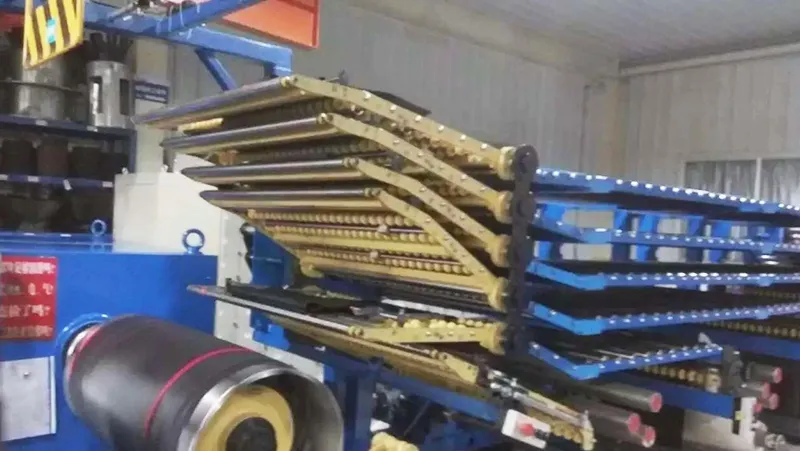

- Cord Fabric Supply Rack Layers: 6 layers
- Max. Cord Fabric & Liner Fabric Roll Diameter: Ø850 mm
- Liner Fabric Winding Power: 1.5 kW
- Winding Shaft Size: 32 × 32 mm
- Max. Liner Fabric Width: 1000 mm
- Splicing Drum Diameter Range: Ø220–Ø340 mm (Different drum sizes can be installed for other specifications)
- Max. Splicing Drum Width: 650 mm
- Main Drive Motor: 3 kW with variable frequency speed control
- Splicing Drum Linear Speed: 48 m/min
- Main Shaft Center Height: 850 mm
- Splicing Time: ≤1.5 min (4 layers of cord fabric per tube)
- Conveyor Belt Width: 650 mm
