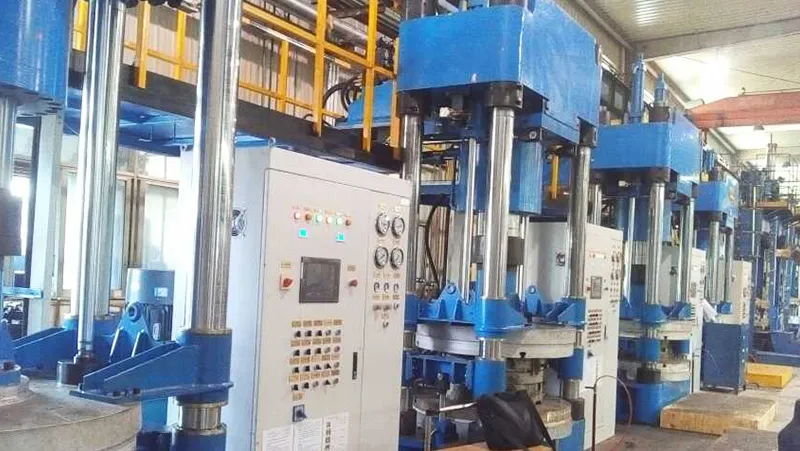

Air Spring Curing Press
Railway Air Spring Manufacturing
Air spring curing presses use controlled temperature and pressure to complete rubber vulcanization, shaping air spring components and providing the elasticity, strength, and durability required for railway suspension systems.
Main Components
| Diameter of Upper & Lower Platen | Ø1220 mm |
| Min. Diameter of T-Slot Layout on Upper & Lower Platens | 4 × Ø550 mm |
| Platen Opening Height | Max. 1600 mm / Min. 120 mm |
| Lower Platen Height from Floor | 600 mm |
| Mold Opening & Closing Stroke / Time | Stroke: 1480 mm; Time: ≤20 s |
Main Components
- Main Frame
- Curing Chamber & Mold Opening/Closing Mechanism
- Pressurizing System
- Central Mechanism
- Middle Mold Lifting Mechanism
- Thermal Piping System
- Hydraulic System
- Electrical Control System
