Passenger Car Radial Tyre Building Machine
Uni-Stage PCR Tyre Building Machine, PCR TBM
Video

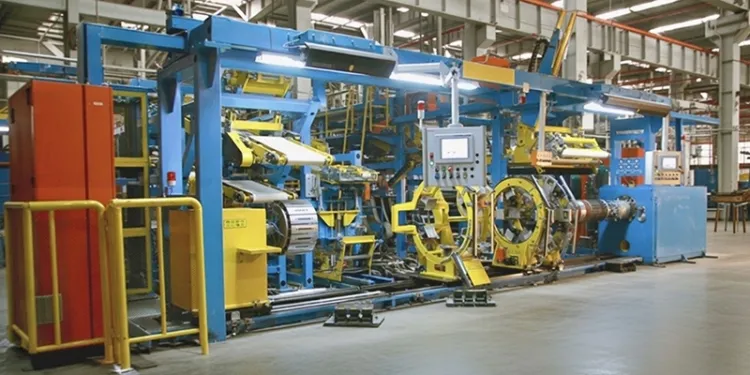

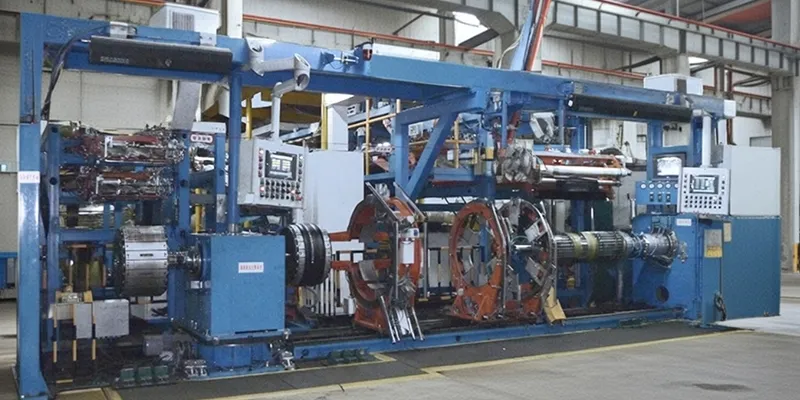

Uni-stage passenger car radial tyre building machines are designed for building passenger car radial green tyres before curing. Belt and tread components and carcass components are prepared and assembled in a coordinated building sequence, which helps keep component positioning more accurate and tyre quality more consistent. These tyre building machines are a good option for production lines that require a higher level of automation and stable building performance.
Features
- Suitable for passenger car radial tyres from 14 to 22 inches, with two-drum or three-drum layouts available.
- Automatic belt length measuring and cutting, with CCD correction for more accurate belt centering.
- The tread material can be supplied from a reel and cut to length automatically with ultrasonic cutting; single-strip feeding is also available.
- Equipped with an optional dual-station tread unwinding setup to help reduce material change time and boost higher output.
- Inner liner and sidewall materials can be pre-laminated, while inner liner, ply, and carcass components are cut to length and applied with automatic centering during building.
- Variable-frequency control is used for material unwinding to help reduce stretching and deformation during feeding.
- PLC control with touchscreen HMI supports parameter setting, recipe storage, process display, and fault diagnosis.
- Designed for passenger tyre production lines that require more consistent component positioning and stable green tyre quality.
