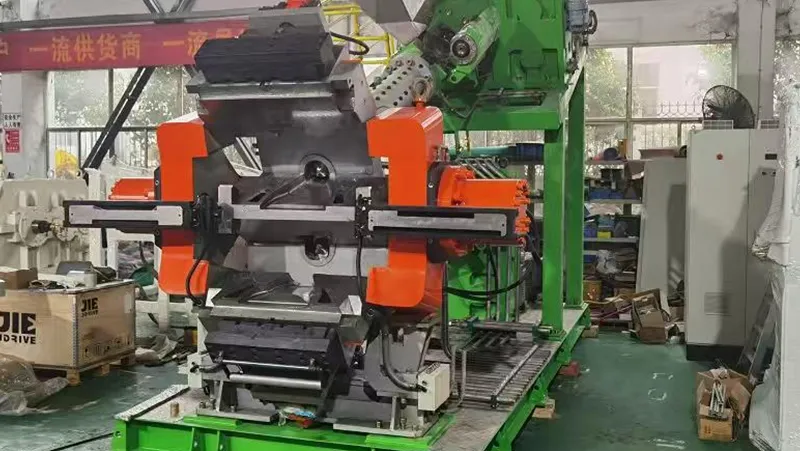

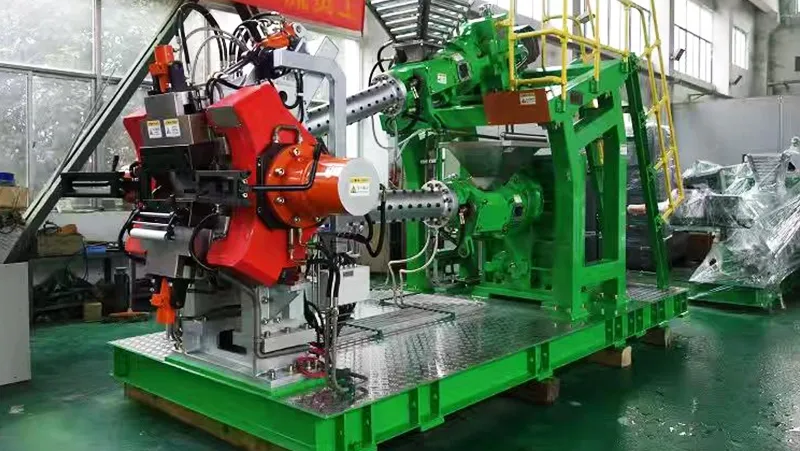

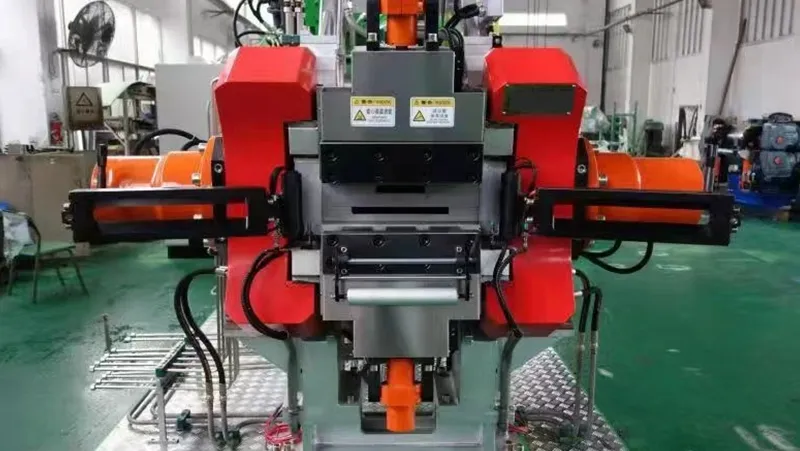

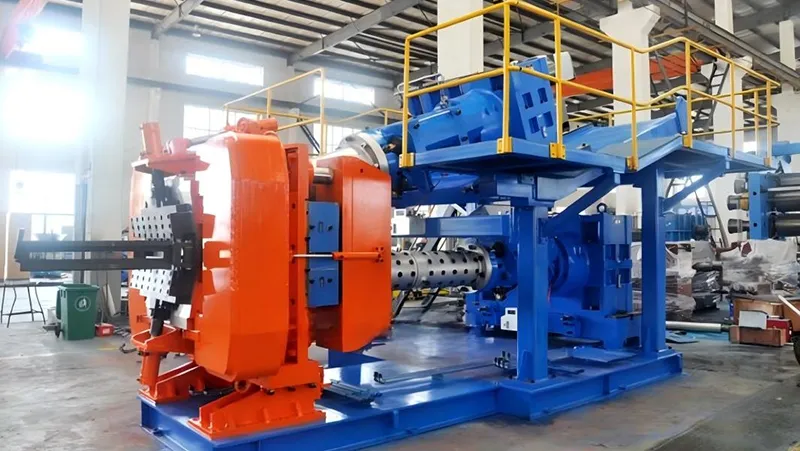

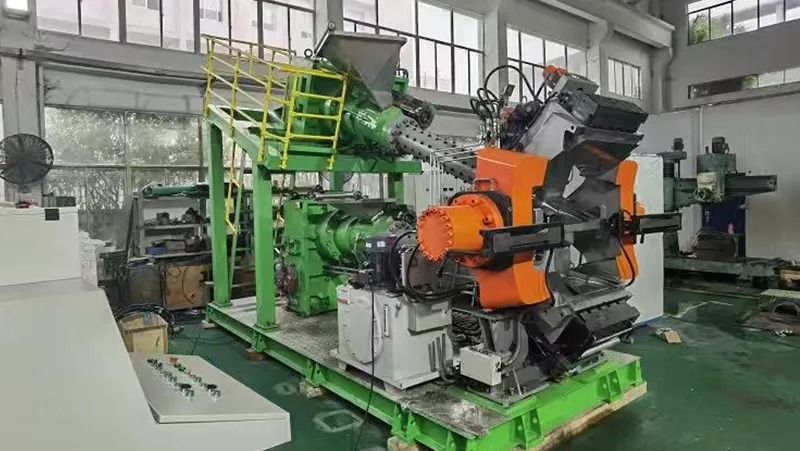

Duplex Extruder, Rubber Extrusion Machine
  • Duplex Extruder, Rubber Extrusion Machine
  • Duplex Extruder, Rubber Extrusion Machine
  • Duplex Extruder, Rubber Extrusion Machine
  • Duplex Extruder, Rubber Extrusion Machine
  • Duplex Extruder, Rubber Extrusion Machine
Leave a Message

Duplex extruders are used for tyre tread and other related rubber semi-finished products that need two compounds to be combined in one extrusion process. For automatic tyre production, this means better control of tread shape and a more stable bond between the two compounds.

Technical Specifications
Item / Model HF250x4.5D / HF250x8D / HF200x8D XJD250x16D XJD200x16D XJD150x16D XJD120x14D
HF200x4.5D XJD150x16D XJD150x16D XJD200x16D XJD150x16D XJD120x14D XJD90x14D
Screw Diameter (mm) 250/200 250/150 200/150 250/200 200/150 150/120 120/90
L/D Ratio 4.5/4.5 8/16 8/16 16/16 16/16 16/14 14/14
Max. Screw Speed (r/min) 57.6/56.6 40/43 50/43 26/33 33/43 43/50 50/60
Hopper Opening (mm) 280x205 / 230x240 365x300 / 200x120 365x300 / 200x120 340x190 / 260x152 260x152 / 200x120 200x120 / 160x100 160x110 / 120x80
Pin Rows - 10 10 12/12 12/10 10/10 10/8
Pins per Row - 8 8 12/10 10/8 8/6 6/6
Extrusion Motor Model Z4-250-31 / Z4-250-11 Z4-250-41 / Z4-250-41 Z4-250-12 / Z4-250-41 Z4-355-12 / Z4-280-32 Z4-280-32 / Z4-250-41 Z4-250-41 / Z4-225-11 Z4-225-11 / Z4-250-41
Power (kW) 132/110 220/220 160/220 450/315 315/220 220/110 110/55
Hot Water Circulation Zones - 9 7 9 9 8 7
Total Heating Power for Hot Water Circulation (kW) - 144 128 152 128 92 84
Overall Dimensions (L × W × H) (mm) 4836x2150x1915 6650x8400x4200 6971x7116x3640 8750x3520x4800 6250x5800x4400 5100x4600x3500 4200x2500x2800
Weight (t) 19.5 33 32 53 40 30 20
Capacity (kg/h) 3500/1800 3500/1500 2600/1500 3600/2600 2600/1500 1500/800 800/360
Features
  • The built-in co-extrusion setup helps the tread come out with a more accurate size and a tighter overall structure.
  • Different configurations are available, including dual-cold feed extruders and cold-hot feed extruders. Depending on the setup, the extruder can be equipped with a hard gear reducer, a hydraulic die head, and systems for temperature and pressure monitoring.
  • Temperature is controlled automatically through a warm water circulation system, and DC speed control helps the extruder run more steadily.
  • In dual-hot configurations, a mechanical die head is used. AC or DC speed control can be selected according to actual production requirements.
  • Deplex extruder can be designed in different configurations to match specific product and process needs.
