Mixing Mill (Open Mill, Two Roll Mill)

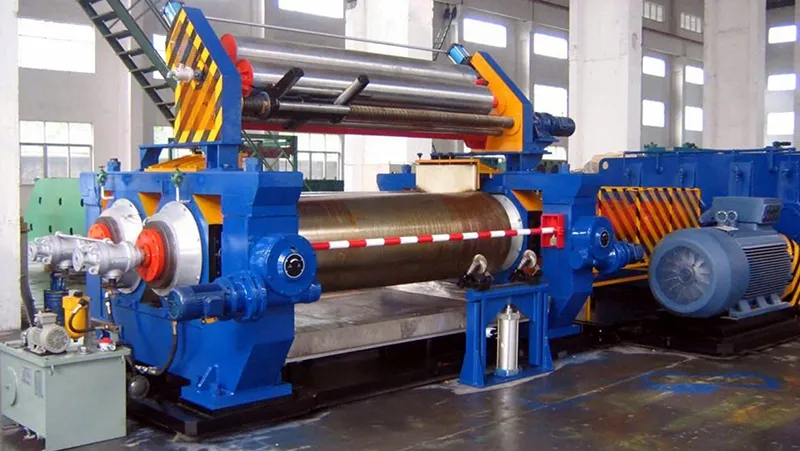

  • Mixing Mill (Open Mill, Two Roll Mill)

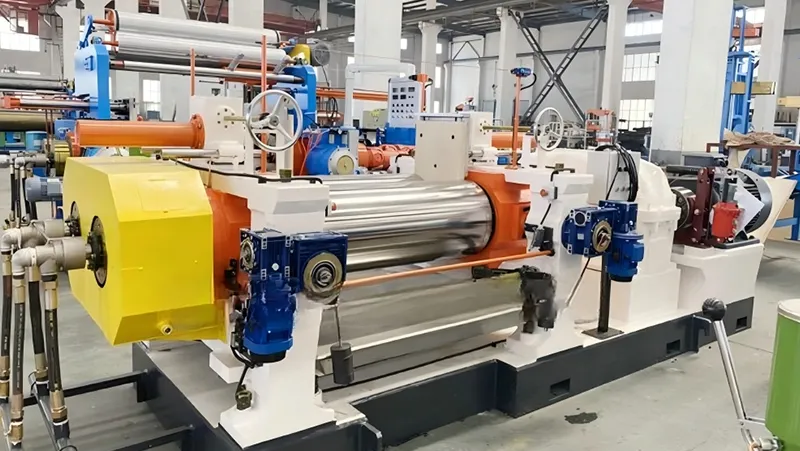

  • Mixing Mill (Open Mill, Two Roll Mill)

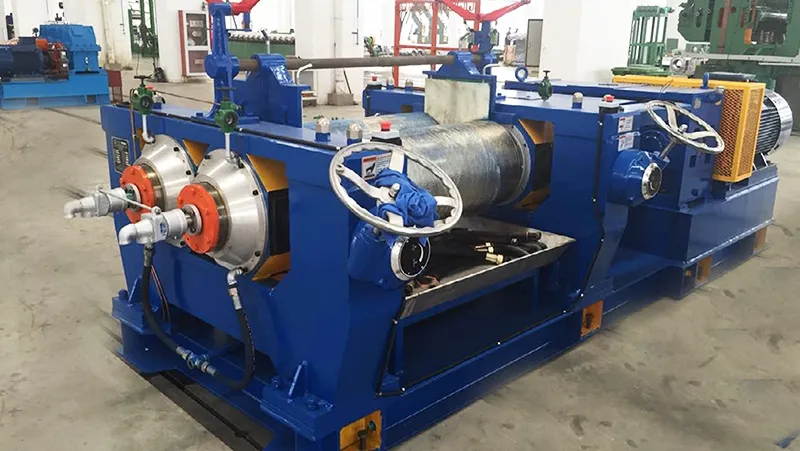

  • Mixing Mill (Open Mill, Two Roll Mill)

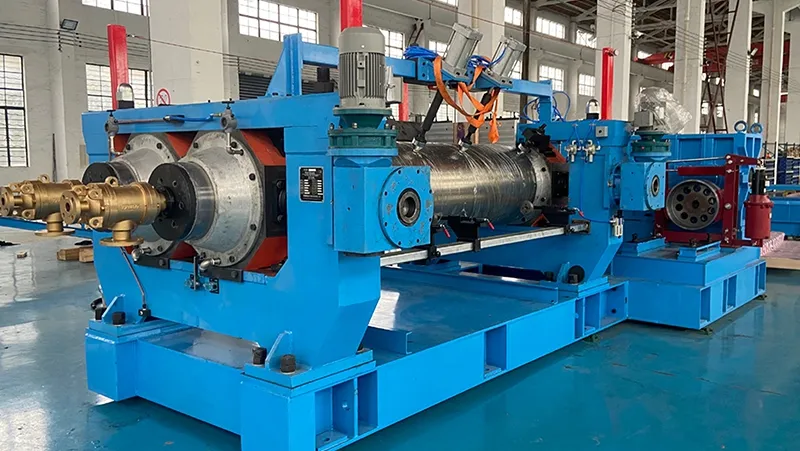

  • Mixing Mill (Open Mill, Two Roll Mill)

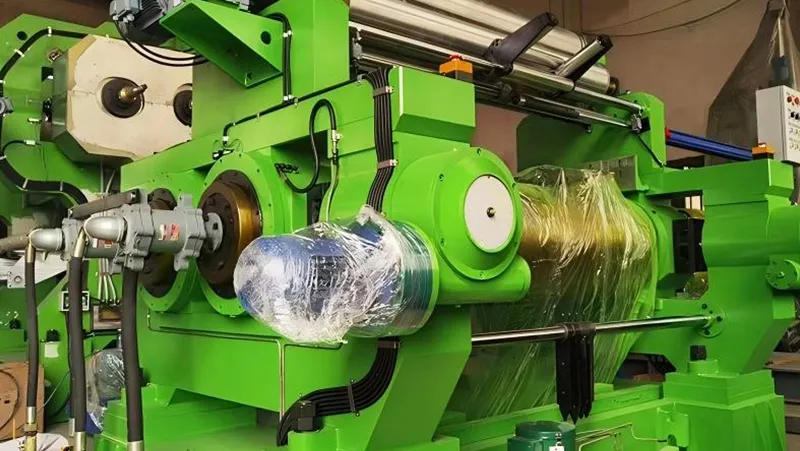

  • Mixing Mill (Open Mill, Two Roll Mill)
Leave a Message
Technical Specifications
Roll Diameter × Length Front Roll Linear Speed (m/min) Friction Ratio Batch Volume (kg) Motor Power (kW) Max. Nip Gap (mm) Overall Dimensions (L × W × H) (mm) Weight (t)
mm Inches
160×320 6×13 8.95 1:1.35 1-2 5.5 4.5 1120×920×1295 1.1
200×500 8×20 19.50 1:1.05 8 11 5 2055×900×1165 2.5
250×620 10×24 15.20 1:1.10 10-15 18.5 8 3220×1500×1920 3.8
360×900 14×35 16.26 1:1.25 15-20 30 10 3920×1650×1725 5.53
400×1000 16×39 18.65 1:1.27 25-35 40 10 4380×1710×1880 8.14
4500×1200 177×47 23.85 1:1.27 30-50 55 10 5050×1920×1870 13
550×1530 22×60 27.175 1:1.25 50-65 90(110) 15 6040×2100×1625 22
610×1830 24×72 28.7 1:1.23 90-120 160 15 6750×3040×1743 35
660×2130 26×84 32.45 1:1.09 165 185 15 7450×3660×2080 45
660×2130 26×84 28.60 1:1.24 165 250 15 6465×3660×2080 45.6
710×2200 28×87 31.90 1:1.09 350 280 15 7108×3085×3015 50
760×2540 30×100 33.23 1:1.09 350 315 15 7108×3085×3015 58
810×2540 32×100 31.90 1:1.09 350 355 15 7108×3085×3015 68
Features
  • Alloy chilled cast iron rolls offer strong hardness and good resistance.
  • The intelligent temperature control system allows faster and more accurate temperature adjustment during operation.
  • The rubber mixing machine can be customized as per client’s specific requirements.
  • Open mixing mills can be supplied in line with European CE standards.
