Steel Cord Conveyor Belt Curing Line
Leave a Message

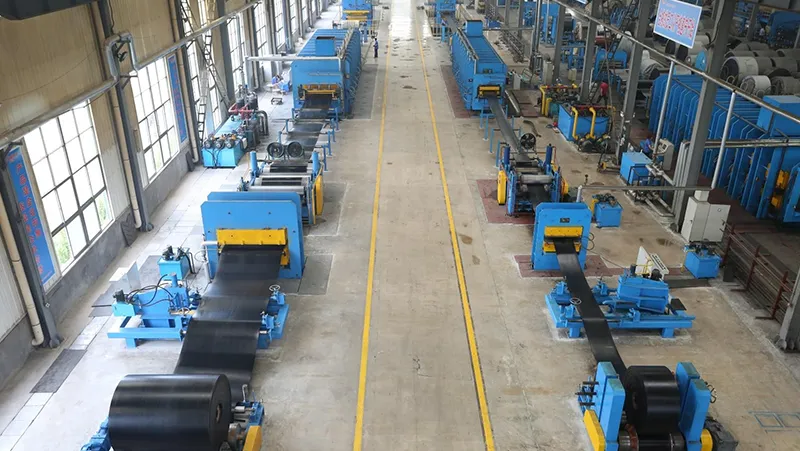

Vulcanizing lines for steel cord and textile conveyor belts are widely used to form, cure, and finish conveyor belt products in a continuous production process. They handle key stages such as belt carcass forming, heat and pressure vulcanization, fixed-length cutting, and winding for packaging. By combining controlled heating and pressure with stable process handling, the line helps improve bonding strength between layers, enhances overall belt durability, and maintains more consistent dimensions throughout production. They are suitable for manufacturing conveyor belts that require reliable performance under demanding working conditions.

Technical Specifications
Parameter 1400 × 12600 (10000) 1600 × 16600 (10000) 1800 × 16600 (10000) 2000 × 12600 (10000) 2200 × 12600 (10000) 2400 × 12600 (10000) 2600 × 12600 (10000)
Nominal Closing Force (MN) 70.56 / 56.00 106.24 / 64.00 119.52 / 72.00 100.8 / 80.00 110.88 / 88.00 120.96 / 96.00 131.04 / 104.00
Heating Plate Size (L × W) (mm) 1400 × 12600 (10000) 1600 × 16600 (10000) 1800 × 16600 (10000) 2000 × 12600 (10000) 2200 × 12600 (10000) 2400 × 12600 (10000) 2600 × 12600 (10000)
Heating Plate Unit Pressure (N/mm²) 4 4 4 4 4 4 4
Hydraulic Cylinder Diameter (mm) 450 / 450 500 / 500 560 / 560 600 / 600 650 / 650 650 / 650 720 / 720
Number of Hydraulic Cylinders (pcs) 24 / 20 32 / 20 28 / 18 20 / 16 20 / 16 22 / 18 20 / 16
Clamping Force (kN) 720 840 960 1320 1450 1580 1710
Tension Force (kN) 576 672 768 1056 1160 1265 1370
Max. Initial Tension per Steel Cord (N) 400 400 400 400 400 400 400
Max. Tension per Steel Cord (N) 4000 4000 4000 4000 4000 4000 4000
Steam Pressure (MPa) 0.35–0.8 0.35–0.8 0.35–0.8 0.35–0.8 0.35–0.8 0.35–0.8 0.35–0.8
Cooling Water Pressure (MPa) 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Main Components

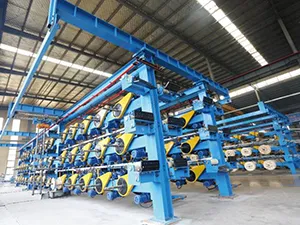

  • Pay off rackPay off rack

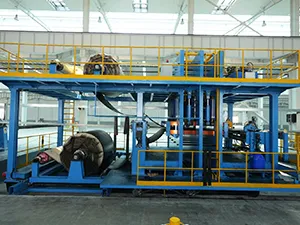

  • Forming carriageForming carriage

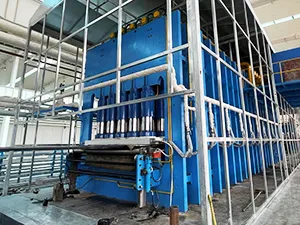

  • Vulcanizing pressVulcanizing press

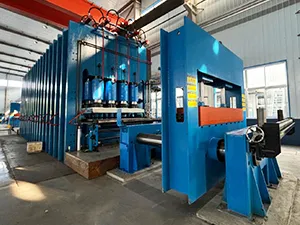

  • Clamping and stretching machineClamping and stretching machine

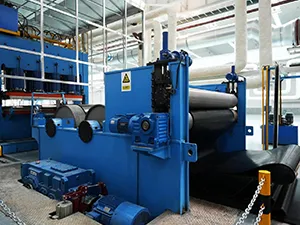

  • Multi-function belt pulling machineMulti-function belt pulling machine

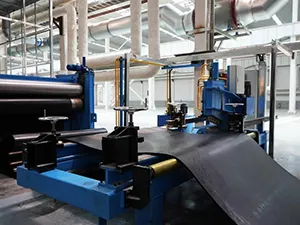

  • Hydraulic cutting machineHydraulic cutting machine

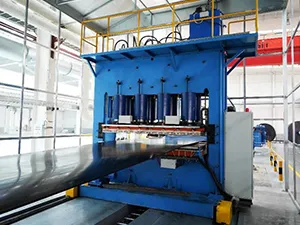

  • Repair vulcanizing pressRepair vulcanizing press

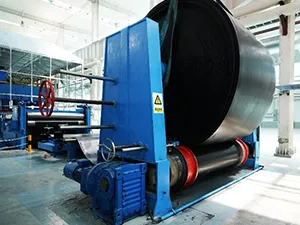

  • Coiling & packaging machineCoiling & packaging machine

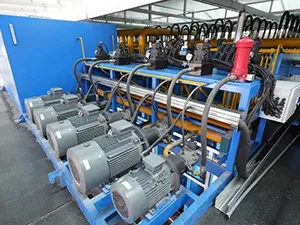

  • Hydraulic systemHydraulic system
