Mechanical Tyre Curing Press
Truck & Bus Radial Tyre Curing Press (TBR Tyre Curing Press)
Video

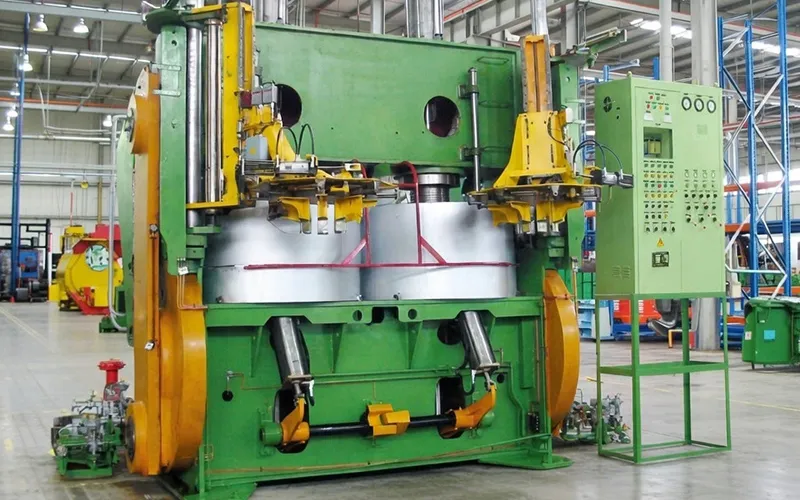

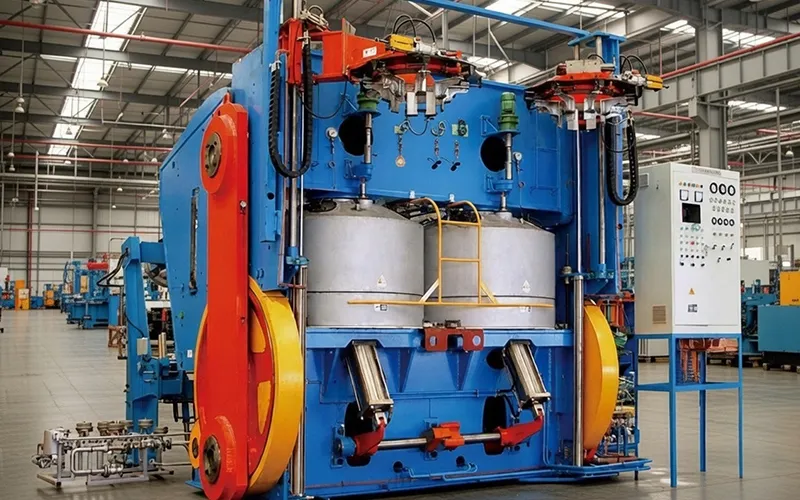

Mechanical tyre curing presses are designed for truck and bus radial tyre curing and can work with either nitrogen or steam curing processes. Depending on the press configuration, mould opening and closing can follow a vertical beam-lifting flip type or a translation type arrangement. During curing, the green tyre is shaped and vulcanized under controlled conditions to achieve the required tyre form and tread pattern.
Technical Specifications
| Model | Unit | ||||||
| Press Size | 55" | 63.5" | 65" | 65.5" | 68" | ||
| Number of Steam Chambers | 2 | 2 | 2 | 2 | 2 | ||
| Nominal Steam Chamber Diameter | mm | Ø1310 | Ø1525 | Ø1585 | Ø1600 | Ø1650 | |
| Max. Clamping Force | KN | 2890 × 2 | 4220 × 2 | 4450 × 2 | 4500 × 2 | 5500 × 2 | |
| Curing Mould Height | mm | 241–445 | 254–635 | 400–650 | 400–650 | 400–750 | |
| Center Mechanism Configuration | BOM | BOM | BOM | BOM | BOM | ||
| Applicable Bead Diameter | in | 14–20 | 16–24.5 | 16–24.5 | 16–24.5 | 22–28 | |
| Max. Cured Tyre Outer Diameter | Segmented mould | mm | Ø935 | Ø1085 | Ø1135 | Ø1150 | Ø1220 |
| Two-piece mould | mm | Ø1000 | Ø1270 | Ø1320 | Ø1345 | Ø1400 | |
| Max. Cured Tyre Section Width | mm | 350 | 450 | 450 | 450 | 500 | |
| Max. Green Tyre Height | mm | 750 | 890 | 890 | 890 | 1100 | |
| Theoretical Opening/Closing Time | s | 60 | 60 | 60 | 60 | 90 | |
| Max. Weight for Mechanical Gripper Handling | Kg | 100 | 100 | 100 | 100 | 150 | |
| Max. Mould Weight | Kg | 5500 | 5500 | 6500 | 6500 | 6500 | |
| Max. External Curing Medium Pressure | Mpa | 0.7 | |||||
| Max. Internal Curing Medium Pressure | Mpa | 2.8 | |||||
| Hydraulic Pressure | Mpa | 2.1-2.5 | |||||
| Power Air Supply Pressure | Mpa | 0.7 | |||||
| Control Air Supply Pressure | Mpa | 0.35 | |||||
| Overall Dimensions (L × W × H) | (m) | 5.7 × 5.9 × 4.5 | 4.5 × 5.2 × 5.0 | 4.6 × 5.2 × 5.0 | 4.6 × 5.2 × 5.0 | 4.9 × 6.5 × 5.3 | |
| Suitable Max. Tyre Size | 7.5R20 | 11.00R20 | 425/65R22.5 | 445/65R22.5 | 440/65R28 | ||
Features
- Equipped with a BOM-type center mechanism for tyre positioning and shaping during curing
- Equipped with a double-column manipulator, trolley-type dual-cylinder tyre unloading mechanism, and front lever-type demoulding mechanism
- Optional electric mould adjustment device, segmented mould drive device, post-inflation device, and tyre storage unit can be configured according to user requirements
- The curing pipeline system can be customized
- PLC control allows curing parameters to be set, while real-time process data, storage, alarms, and historical record review can all be managed during curing
- An Ethernet interface is available for networking multiple curing presses
