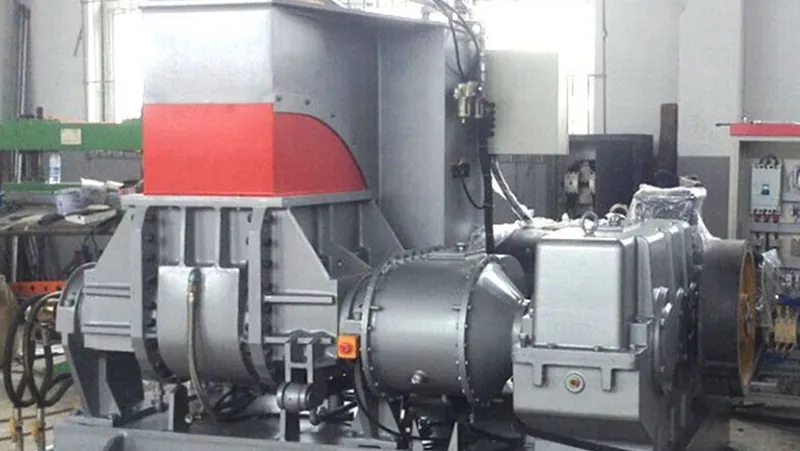

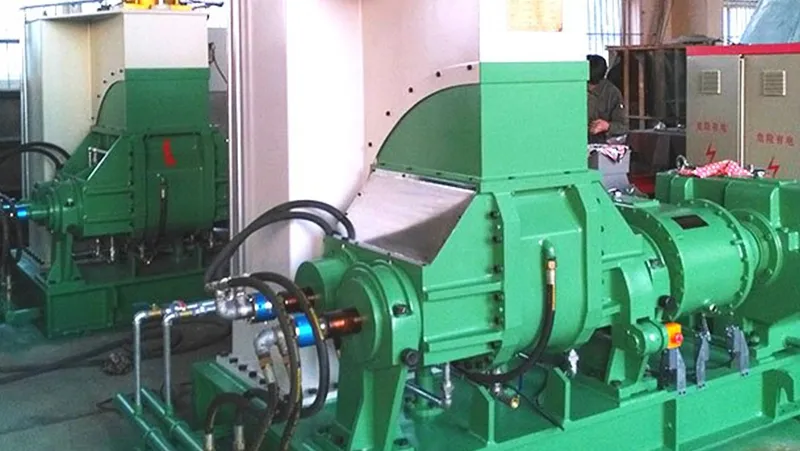

Rubber Kneader Machine
Technical Specifications
| Model | |||||||||
| Total volume of mixing chamber (L) | 8 | 25 | 45 | 75 | 125 | 180 | 250 | 325 | 440 |
| Working volume of mixing chamber (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | 150 | 200 |
| Main motor power (kW) | 5.5 | 15 | 30 | 55 | 75 | 110 | 185 | 220 | 280 |
| Rotational speed of rotor (front/rear) (r/ min) | 32/25.8 | 32/25 | 32/27 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Tilting angle degree (kW) | 135 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Tilting motor power (kW) | 0.55 | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 4 | 5.5 | 7.5 |
| Pressure of compressed air (Mpa) | 0.5-0.8 | 0.5-0.8 | 0.5- 0.8 | 0.5-0.8 | 0.6- 0.8 | 0.6- 0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Pressure of cooling water (Mpa) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3- 0.4 | 0.3- 0.4 | 0.3-0.4 | 0.3-0.4 |
| Heating steam pressure (plastics mixing) (Mpa) | 0.5-0.8 | 0.5- 0.8 | 0.5- 0.8 | 0.5-0.8 | 0.5- 0.8 | 0.5- 0.8 | 0.5- 0.8 | 0.5-0.8 | 0.5-0.8 |
| Overall dimensions (mm) | 1660x 960 ×1750 | 2580 x 1300 ×2280 | 2630 x 1520 ×2550 | 3200 x 1900 ×2950 | 3280x 1930 ×3070 | 3330x2620 ×3340 | 3930x3000 ×3660 | 4200x3300 ×3900 | 4520x3400 X4215 |
| Approx. Weight (t) | ~2 | ~3.3 | ~4 | ~6.3 | ~7.5 | ~10.3 | ~14.2 | ~19.5 | ~22.5 |
Features
- Kneader machine consists of body welded with high quality steel plates and two pieces of side plates. The chamber, rotors and piston ram are all jacketed structure for the ingoing of steam, oil and water for heating and cooling to suit the various requirement for the process of mixing and plastication.
- Dispersion Kneader Machine Motor, reducer adopts hardened tooth surface gear, that has low noise and can save 20% electricity or power and has a long service life.
- The machine PLC control system adopts Mitsubishi/Omron. Electric parts adopt ABB or US Brand, that will ensure good performance.
- Hydraulic pressure tilting mechanism with the advantage of fast discharging materials and 140 tilt angle.
